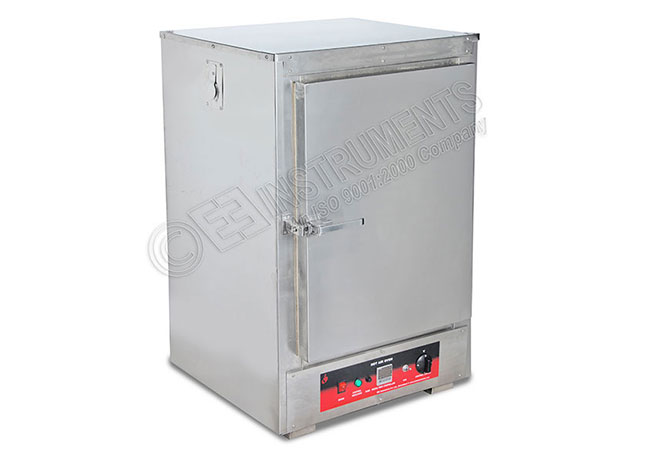

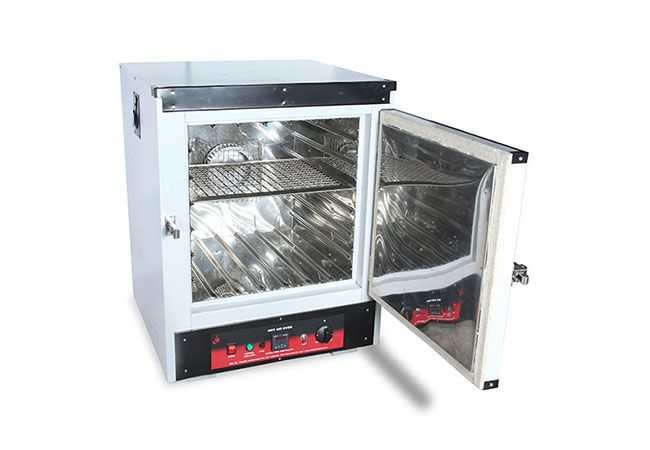

Hot Air Drying Oven - EIE – 101D

Most crucial and versatile instrument being used in any laboratory testing procedures. Almost all ISO & IS Standards state to conduct drying operation of ceramic tile for laboratory testing.

Inner Chamber made of mirror Polished Stainless Steel (S.S.304) material & Outer body with CRC Sheet powder coated in attractive shades.

Inner Chamber made of mirror polished Stainless Steel (S.S.316) material & Outer body is fabricated from S.S.304 matt finished material.

Double walled design
Thick glass wool insulation to prevent heat loss
Microprocessor based AUTO-TUNE PID Digital Temp Controller cum indicator
Temperature range : 50 °C – 250 °C
Temperature Accu : ± 0.5 °C
Temperature display : Digital LED Display
Operates on : 230 Volts, 50 Hz, Single phase, AC Supply
Special heavy duty stainless steel lock and door hinges
Heavy duty stainless steel trays for sample placement
Forced air circulation blower for Uniform Temperature Distribution
Supplied complete with Calibration certificate , IQ-OQ-PQ Documents and test report
Calibration certificate with NPL Traceability for temperature sensor and Digital controller
Available in following sizes

Inner chamber size(cms) (D x W x H)	Overall dimensions (cms) (D x W x H)	No of trays	Chamber capacity (Liters)	Power consumption (Kw)	Approx Weight (Kgs)	Digital Model Numbers (EIE-103DP)	Digital GMP Model Numbers (EIE-101DG)	Thermostatic Model Numbers (EIE-101TP)
30 x 30 x 30	52 x 45 x 64	1	27	1.0	45	EIE-101DP27	EIE-101DG27	EIE-101TP27
35 x 35 x 35	57 x 50 x 72	1	64	1.0	52	EIE-101DP64	EIE-101DG64	EIE-101TP64
45 x 45 x 45	67 x 60 x 82	2	92	1.5	72	EIE-101DP92	EIE-101DG92	EIE-101TP92
45 x 45 x 60	67 x 60 x 97	2	121	1.5	78	EIE-101DP121	EIE-101DG121	EIE-101TP121
60 x 60 x 60	82 x 75 x 97	3	216	2.0	110	EIE-101DP216	EIE-101DG216	EIE-101TP216
60 x 60 x 90	82 x 75 x 125	3	324	2.5	148	EIE-101DP324	EIE-101DG324	EIE-101TP324

D : Digital, T : Thermostatic, G : GMP, P : Powder coating Note : Customized sizes are also available
