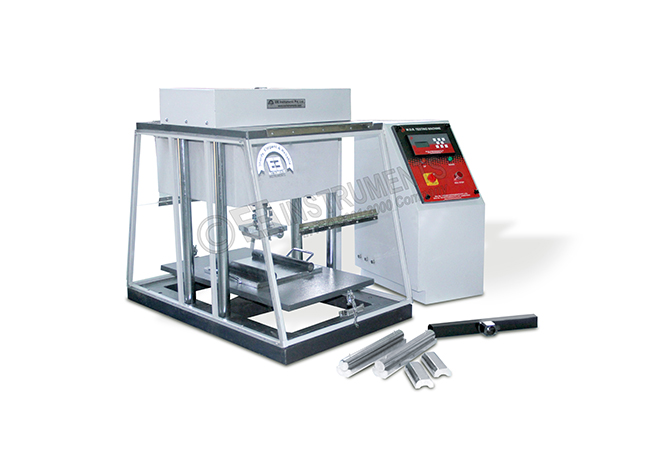

Fire Brick MOR Testing Machine - TC-104(FB)

Fire Brick MOR Testing Machine - TC-104(FB)

Compliance standards

  • ASTM C133


  • Used for determination of the modulus of rupture (MOR) of dried or fired refractory shapes of all types


3 KVR servo controlled stabilizer is recommended

Optional Accessories

  • Standard PC Software to log and modify the series of results for future provisions
  • Closed loop programmable servo mechanism with position feedback (encoder) system

Quick Inquiry

Key Features

  • Electro-Mechanical Design
  • Quite and vibration free operation
  • Standard Digital Model with Load Cell and LCD Display
  • Programmable rate of loading
  • Auto stop and Auto reverse upon breaking of the sample
  • Selectable test units – KG / KN
  • Special acrylic guard to protect the user against ceramic sprinkles
  • Maximum load Capacity : 1000 kgf
  • Least Count : 1.0 Kgf
  • Fire brick size of : 230 mm length x 115 mm width x 76 mm thickness cane be tested
  • Operation on : 230 Volts, 50 Hz, Single Phase, AC Supply
